Pipelines

Pipelines are the core automation engine of OpenHEXA. They let you create sophisticated data workflows that can process, transform, and analyze information automatically. Think of pipelines as programmable data applications that execute complex tasks with minimal human intervention.

What are pipelines?¶

OpenHEXA pipelines are Python-based data applications designed to handle a wide range of data processing scenarios:

• Data processing and ETL: Extract, transform, and load data from various sources into your analytics environment
• Report generation: Automatically create PDF reports, Microsoft Word documents, and other outputs based on your data
• System integration: Connect different data systems by fetching, transforming, and pushing data between platforms
• Data analysis: Perform complex analytical tasks and generate insights from your datasets
• Workflow automation: Orchestrate multi-step processes that would otherwise require manual intervention

Pipelines are written as Python programs, giving you complete control over their behavior and functionality. For detailed development guidance, see our dedicated pipeline development guide.

Run and monitor pipelines¶

Once a pipeline is deployed in a workspace, all workspace members can run it.

Manual execution¶

1. Select a pipeline: Go to the Pipelines section in your workspace.
2. Click Run: Click the Run button to start pipeline execution.
3. Configure parameters: Enter any required parameters for the current run.

While your pipeline is running, you can monitor its progress in real time:

• Status updates: Real-time status indicators showing current execution state
• Progress messages: Feedback messages (INFO, DEBUG, WARNING, ERROR, CRITICAL) from the pipeline developer
• Log output: Comprehensive error logging information

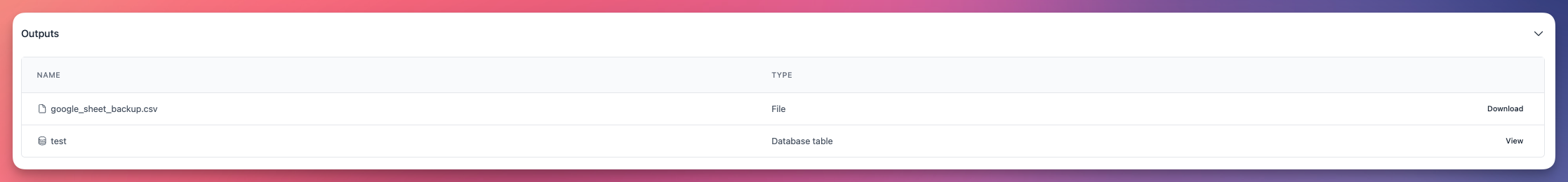

Access output results¶

Once a pipeline run completes successfully, you can access its outputs in the run details:

• Generated datasets: Access dataset versions created by the pipeline
• Generated files: Download or view files created by the pipeline
• Database: Access data written to your workspace database

Create pipelines¶

OpenHEXA provides multiple approaches for creating pipelines, each suited to different use cases and skill levels.

Creation methods¶

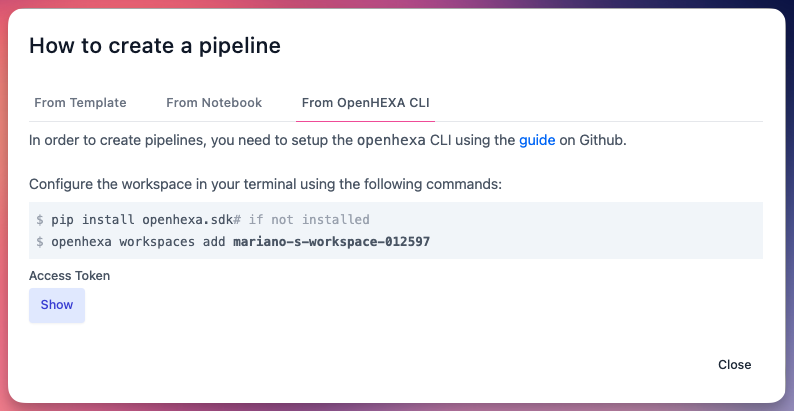

1. Use the OpenHEXA CLI¶

For developers and data engineers, the CLI provides the most flexible approach: - Full control over pipeline structure, parameters, and configuration - Integration with GitHub for version control - Advanced development features

See our guides: Using the OpenHEXA CLI and Writing OpenHEXA Pipelines.

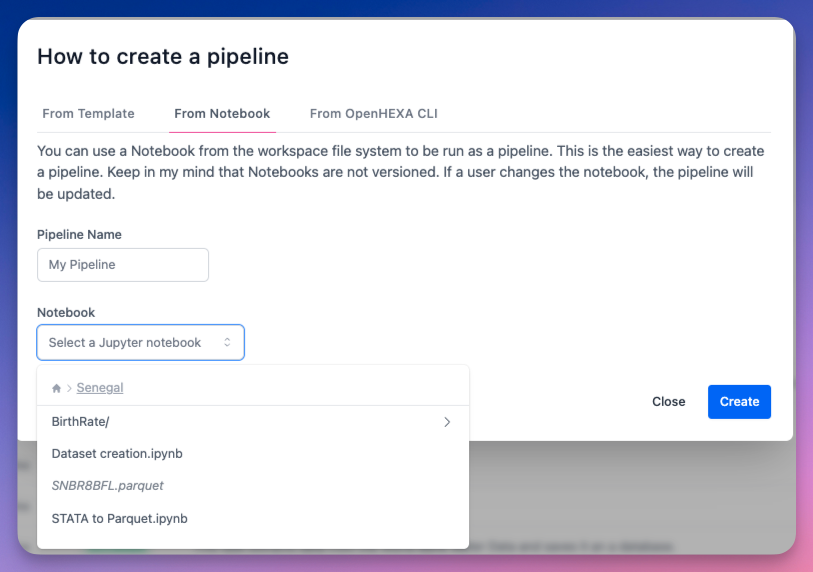

2. From a Jupyter notebook¶

You can use a Notebook from the workspace file system to be run as a pipeline. This is the easiest way to create a pipeline: - Quick start: Transform exploratory analysis into production workflows - Limitations: Notebook-based pipelines don't support input parameters

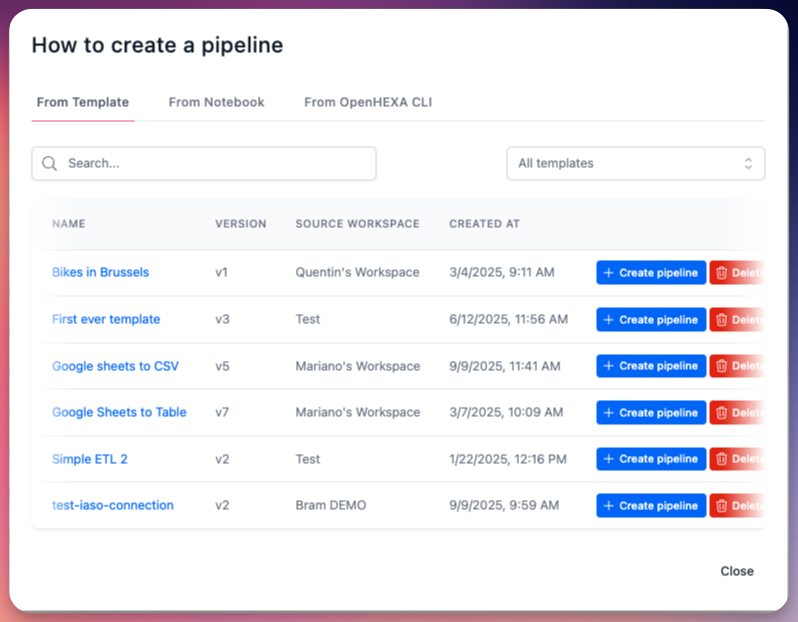

3. From template pipelines¶

This option lets you use pre-built, professionally developed pipelines for common use cases:

Method 1: From Create Pipelines page

1. Go to the Pipelines section.
2. Click Create.
3. Select From Template.
4. Choose your template and click Create Pipeline.

Method 2: From Available Templates page

1. Go to Available Templates.
2. Select your desired template.
3. Click Create Pipeline.

Template pipelines library¶

OpenHEXA's template library includes official pipelines developed by Bluesquare and partner organizations, specifically designed to address common data integration challenges in public health and analytics.

Explore templates¶

1. Go to Available Templates in your workspace.
2. Browse the catalog of available template pipelines.
3. Click any template to explore its documentation, code, and capabilities.

Template updates¶

When you create a pipeline from a template, OpenHEXA maintains a connection between your pipeline and the source template. This enables template upgrades when new versions become available.

You can choose between two upgrade methods when creating a template-based pipeline:

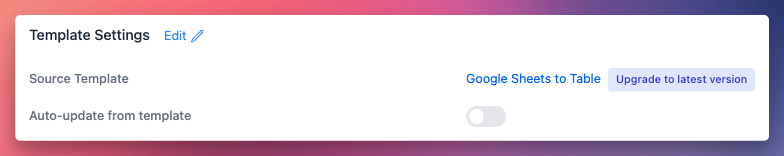

• Manual (Default): You control when to upgrade. Leave "Auto-update from template" disabled.

  • Receive notifications about new versions
  • Review changes between versions
  • Upgrade using the "Upgrade to latest version" button

• Automatic: Pipeline automatically updates when template changes. Set "Auto-update from template" enabled.

  • No manual intervention needed
  • Pipeline stays in sync with template automatically

Publish template pipelines¶

Pipeline creators can publish their own template pipelines to share with other users and workspaces.

1. Develop your pipeline: Create and test your pipeline using standard development practices.
2. Prepare documentation: Ensure your pipeline has comprehensive documentation and clear parameter descriptions.
3. Publish: When you're satisfied, click Publish Template (or Publish New Template Version if you're publishing a new version of an existing template). Don't forget to add a changelog describing the changes you're making.

Webhooks¶

You can trigger pipelines from external applications using webhook endpoints. This enables seamless integration with third-party systems and automated workflows.

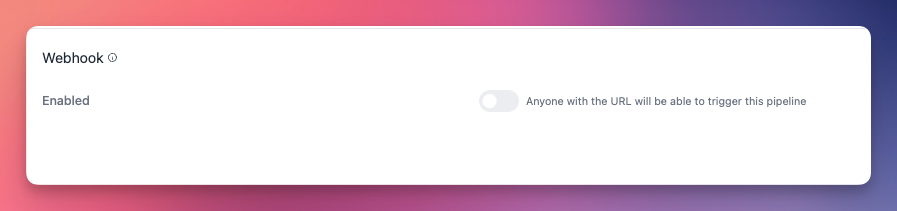

Click Edit in the Webhook section, and turn on the Enabled toggle.

Webhook configuration¶

• Endpoint URL: Each pipeline has a unique webhook URL for external access
• Parameter support: Webhooks can accept parameters to customize pipeline behavior

Example usage¶

curl -X POST \
  -H "Content-Type: application/json" \
  -d '{"parameter_1":"1","org_unit_id":14, "sheet_id":"id-sheet"}' \
  https://api.openhexa.org/pipelines/{pipeline_id}/run

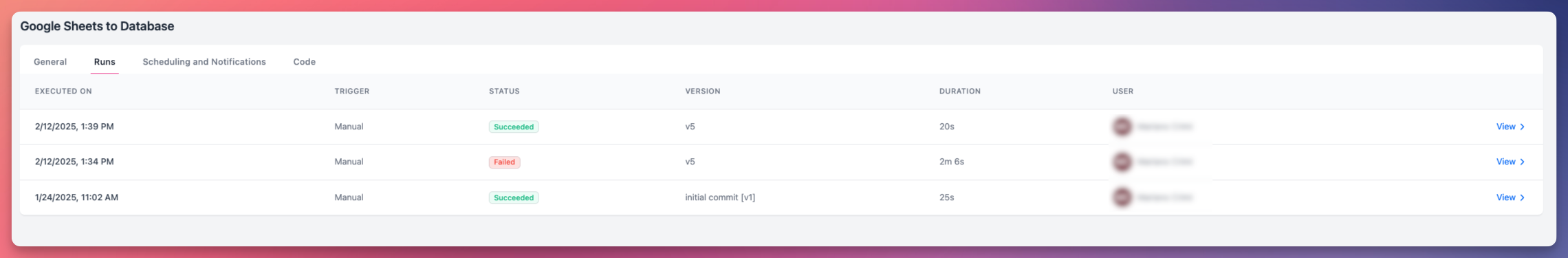

Pipeline runs¶

• Execution history: View all previous pipelines. Click View for detailed logs and results of a specific run.
• Status tracking: Monitor run status (pending, running, completed, or failed)

Scheduling and notifications¶

You can schedule pipelines to run automatically at specified intervals, enabling hands-off data processing workflows.

Set up schedules¶

1. Go to your pipeline's detail page.
2. Open the Scheduling and Notifications section.
3. Configure your schedule using cron expressions. Use crontab.guru if you need syntax help.

Notification configuration¶

• Recipients: Choose which workspace members will receive notifications. You can add as many colleagues as you'd like.
• Level: Select the level at which the notification will be triggered for the person: All to send notifications on every run, or Error for notifications in case of error only.

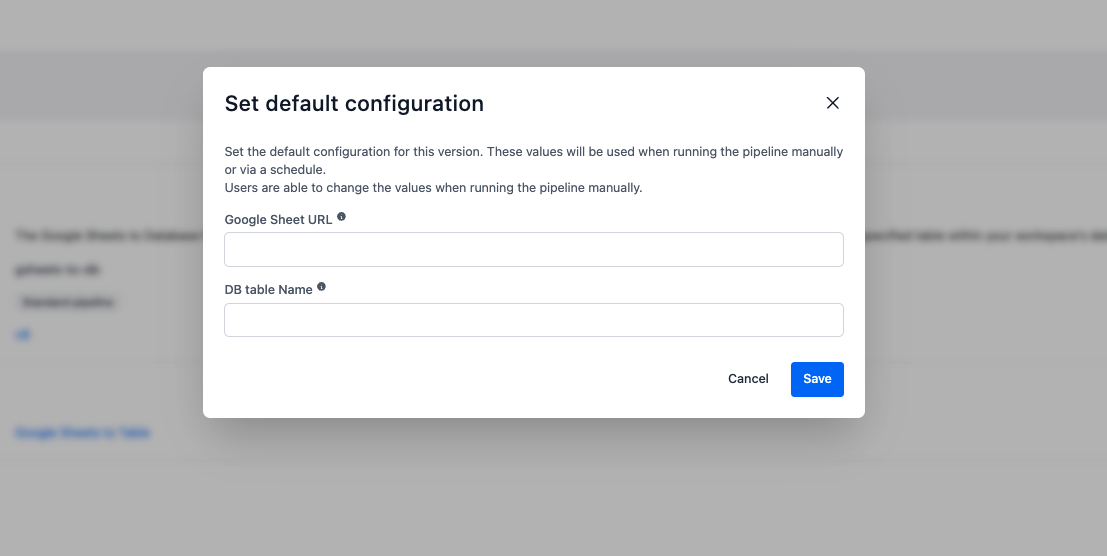

Default configuration¶

Set default parameter values that will be used for scheduled runs.

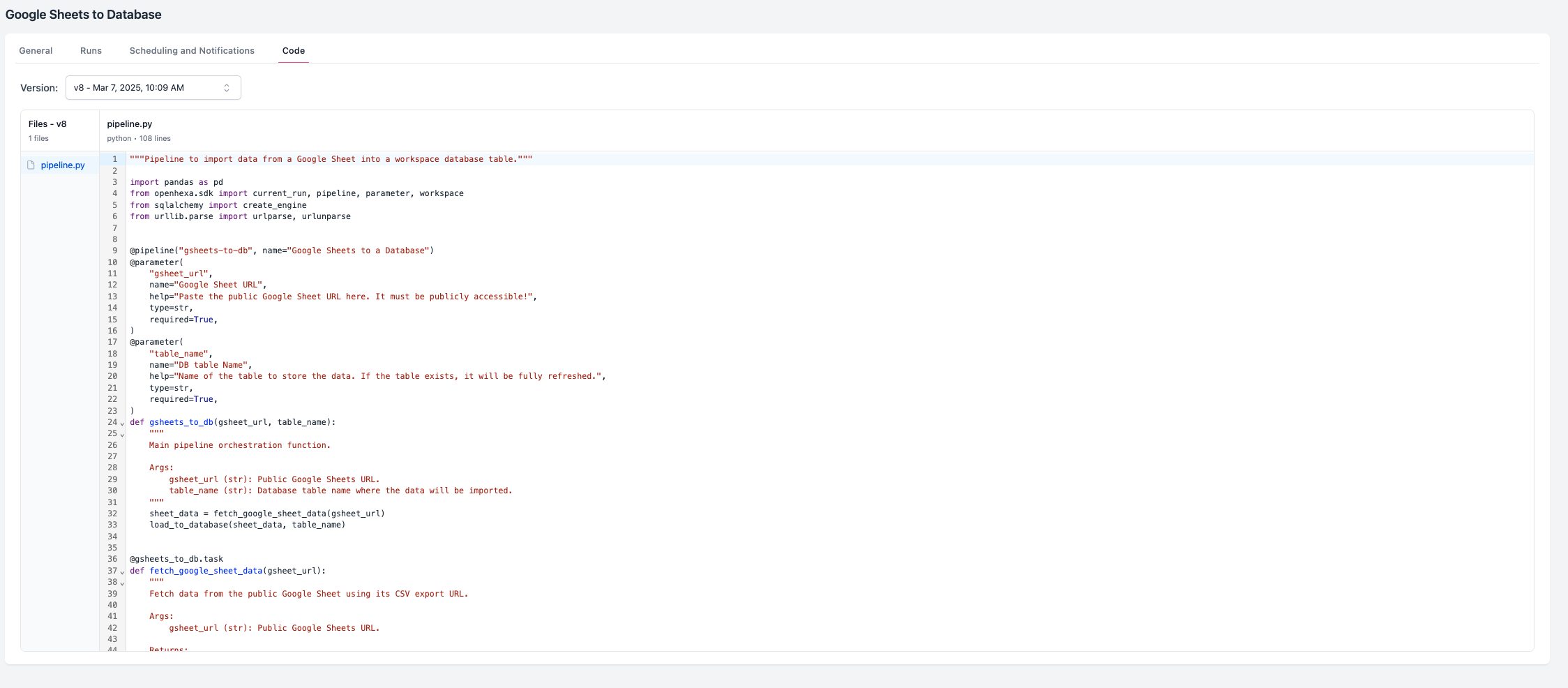

Source code access¶

• View and edit code: Browse and modify pipeline source code directly in the web interface
• Download: Export pipeline code for local development or backup
